A DIY self-watering planter pairs a sealed water reservoir with a wicking layer that pulls moisture up into the soil on demand, cutting watering frequency from daily to roughly once a week. With a 3D printer you can produce reservoir inserts sized to any pot — most home printers handle a 200 mm bed, which fits inserts for pots up to 8 inches across, holding 1.0–1.5 litres of water and supporting a tomato plant for 5–7 days between refills.
The traditional self-watering planters sold at garden centres are moulded plastic, fixed sizes, and rarely match the pots you already own. A printed insert solves both problems: you scale the model to your existing pot, choose a filament that suits your watering chemistry, and reprint a part if it cracks. The rest of this guide covers the parts, filament choices, slicing settings, assembly steps, and the troubleshooting that catches most first-time builders. If you’re new to printing functional parts, the case studies in our sister site’s practical 3D printing projects roundup give a sense of the dimensional tolerances you’ll be aiming for.
How a Self-Watering Planter Actually Works
Sub-irrigation works by capillary action. A wicking column made of cotton rope, polyester braid, or compressed soil dips into a sealed reservoir below the root zone, and water travels upward against gravity through the porous medium to wherever the soil is drier. The plant pulls the water it needs; the reservoir refills the wick passively. Done right, the soil never floods and never goes bone-dry.
Three structural elements make this possible. The first is the reservoir, an enclosed cavity at the bottom of the pot holding 0.8–2 litres depending on planter size. The second is a soil divider with one or more wick passages, which physically separates the wet reservoir from the soil column above. The third is a fill tube, an upright pipe that lets you pour water from above and an overflow drain at the maximum-fill level so excess water escapes rather than drowning the roots. The 3D-printed insert combines all three into a single drop-in part.
Parts You’ll Need
One reservoir build needs about 180–250 grams of filament, a 200–300 mm length of wicking cord, a pot in the 6–10 inch range, and a sharp craft knife for trimming flash. Total cost lands around $4–6 per planter once you’ve amortised the printer.
The minimum bill of materials:

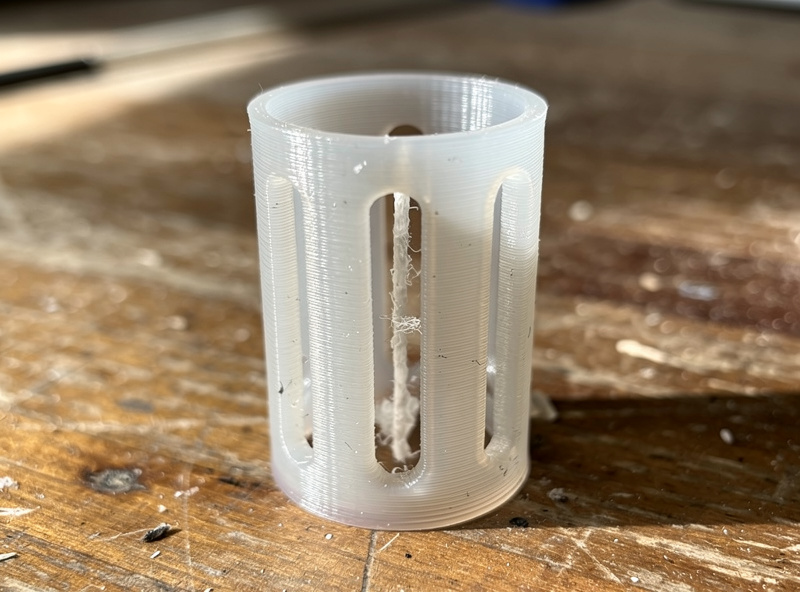

- 3D-printed reservoir insert — cup-shaped, with overflow slots, fill-tube collar, and a recessed wick channel
- Wicking cord — 8 mm cotton rope or 100% polyester braid (avoid blends; they wick unevenly)
- Pot — terracotta, glazed ceramic, or thick plastic; the insert sits in the bottom third
- Soil — light potting mix with perlite at 30%; heavy garden soil compacts and breaks the capillary path
- Fill tube — 20 mm PLA pipe, printed in the same job, or a section of food-grade PVC
For container gardeners running multiple planters, a coordinated soil mix matters more than the printer settings — see the soil and compost guides for the perlite/coir ratios that hold capillary action without sealing off air to roots.
Choosing the Right Filament
PETG is the right default. It absorbs less than 0.4% water by mass over 30 days of immersion, prints reliably at 235 °C on a glass or PEI bed, and handles the slight acidity of compost-tea fertigation without softening. PLA prints easier but degrades visibly within 8–12 months of constant moisture exposure — fine for a single growing season, poor for a permanent install. ABS holds up chemically but warps badly without an enclosure, and most home printers don’t have one.
For the wick channel and overflow slots, print at 100% infill or use 0.6 mm walls minimum; thinner walls develop weeping leaks after a few thermal cycles. Use a 0.4 mm nozzle and 0.2 mm layer height — finer layers add print time without improving water-tightness, and coarser layers let water track between layer lines. If you’ve battled stringing on PETG before, the same fix applies here: increase retraction to 5 mm and drop nozzle temp 5°C to seal the gaps that cause reservoir leaks.

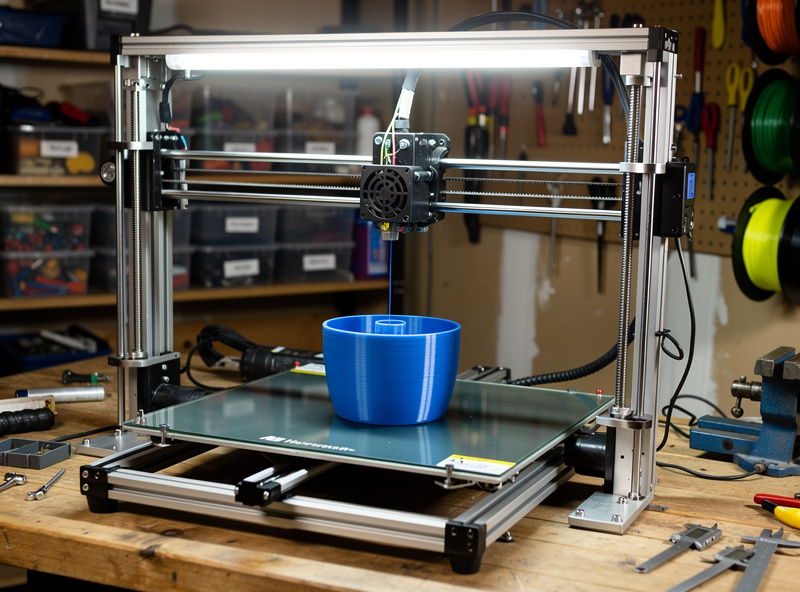

Slicing and Printing the Insert
Print orientation drives everything. Lay the insert with its open end down — the cavity facing up gives perfect overflow-slot geometry but leaves layer lines running horizontally across the reservoir wall, which is exactly the wrong direction for water-tightness. Flipping it open-end-down means a small bridge over the empty cavity, but layer lines now run vertically and water can’t track between them.
Slicer settings that consistently produce a watertight reservoir:
- Walls: 4 perimeters minimum (1.6 mm with 0.4 mm nozzle)
- Top/bottom layers: 6 each — most leaks occur at the bottom face
- Infill: 30% gyroid (gyroid resists hydrostatic pressure better than grid)
- Print speed: 40 mm/s outer perimeters, 60 mm/s infill
- Cooling: 30% fan from layer 3 onward — too much fan splits PETG layer adhesion
Expect a 6–9 hour print for a 6-inch insert, longer for the 8-inch version. After printing, fill the reservoir with water in the sink for 30 minutes before installing — it’s faster to find a leak over the basin than over your living-room floor.
Assembly and Wick Installation
Drop the insert into the pot. Thread two strands of wicking cord through the printed channel, leaving 4 cm hanging into the reservoir and 12 cm extending upward into where the soil column will sit. Soak the cords thoroughly before adding soil — dry cords sometimes refuse to start wicking once buried, especially with PETG inserts that have a slight hydrophobic surface from the print process.
Layer the soil in 3–4 stages, watering each layer lightly to settle it without compacting. The wick cords should run vertically through the root zone of where you’ll plant. Position the fill tube at the back corner and seat it firmly in the printed collar. After planting your seedling, fill the reservoir through the tube until water runs from the overflow slot, then top up the surface soil once. From this point on, you only refill through the tube.
Troubleshooting Common Failures
Roughly 1 in 4 first builds has a problem. The fixes are nearly always small:
- Reservoir empties in 24 hours instead of 5–7 days — overflow slot is below the soil divider; raise it or reduce slot count from 4 to 2
- Soil stays bone dry above the wick — wick cord too short, blended fibres, or compacted soil; pull the cord, replace with 100% cotton or polyester, loosen the soil with a chopstick
- Visible weeping through the reservoir wall — wall count below 4 or bottom layers below 5; reslice and reprint, no field repair holds long-term
- Algae growing in the reservoir — fill tube is letting in light; cap with a small printed plug between refills
- Roots growing into the reservoir — soil divider holes too large; aim for 3 mm pinholes, not 8 mm gaps
For wick replacement and root pruning, read the raised-bed planter guides on root-bound diagnosis — the symptoms are similar in container systems.
When This Is the Right Choice
Self-watering planters earn their build time when you’re growing thirsty annuals — tomatoes, peppers, basil, cucumbers — in containers on a balcony or patio that you can’t reliably water mid-week. They under-perform for drought-tolerant herbs (rosemary, thyme, sage) which prefer soil that dries between waterings; the constant moisture causes root rot inside 6 weeks. Succulents are the worst candidate; never combine them with sub-irrigation.
If you already have a few balcony pots, build one insert first, run it for a full month, and only commit to printing six more once you’ve validated the reservoir cycle for your specific climate. A south-facing balcony in summer will run a reservoir dry in 3 days; a shaded north patio can stretch the same reservoir to 9 days. Your refill cadence is the only metric that matters once the build is working.
Frequently Asked Questions
Is PETG safe for growing food in self-watering planters?
PETG is generally regarded as food-contact safe and leaches minimally compared with PLA and ABS. Independent testing shows under 0.05 mg per litre of additive migration after 30 days of cold-water immersion, which is below FDA food-contact thresholds for most uses.
How big should the reservoir be for a tomato plant?
A determinate cherry tomato in a 6-inch pot needs roughly 1.0 litre of reservoir capacity for a 5-day refill cycle in mild weather. Indeterminate beefsteak varieties in 10-inch pots transpire 3 to 4 times more and need 2 to 2.5 litres or more frequent refills.
Can I use any wicking material or does it have to be cotton?
Use 100 percent cotton rope or 100 percent polyester braid. Cotton-polyester blends wick unevenly because the synthetic fibres do not absorb water, leaving dry pockets along the cord. Avoid jute and sisal because they rot inside 8 weeks of constant moisture.
How long does a 3D-printed reservoir insert last?
PETG inserts run 5 to 7 years in continuous use with no visible degradation other than mineral staining. PLA inserts crack within 8 to 12 months from constant moisture. Expect to reprint a PLA insert every growing season; PETG is a multi-year part.
Do I need to fertilise differently in a self-watering planter?
Yes. Top-dress with slow-release granular fertiliser at planting and supplement weekly with half-strength liquid feed poured into the soil surface, not the reservoir. Fertilising through the reservoir concentrates salts at the wick base and burns root tips within 2 weeks.
What happens if the reservoir runs completely dry?
The wick stops drawing water and the soil dries from the bottom up over 2 to 4 days. Most plants recover if you refill within 48 hours. After that, the dried wick cord usually needs to be re-soaked separately before capillary action restarts.
Can I print the insert in PLA if I have no PETG?
Yes for a one-season trial, no for a permanent build. PLA performs identically for the first 6 months but starts crazing along layer lines around month 8 and develops weeping leaks by month 12. Treat PLA inserts as disposable.
